Integrating Reporting Services 2008 with SharePoint 2007 Step 1 - SQL Server 2008 Installation

Step 1 - SQL Server 2008 Installation and Configuration

Introduction

This post is the first of a group showing how to use SQL Server 2008 Reporting Services with SharePoint 2007.
The next steps are: I have chosen a Simple Farm Topology with SQL Server 2008 and Windows SharePoint Services 3.0 on the same Virtual Machine. This machine has just Application Server role and not Domain Controller role, so the Service Accounts for both, SharePoint and SQL will be machine local accounts.
The goal is to quickly allow someone to create reports and to discover SharePoint Integrated Mode features: deployment, Web Parts dashboards, subscription, snapshotings, etc..
Even planning for further deployments in a Farm environment with several servers and Active Directory, it may be usefull to have been familiarized with involved products installation, configuration and use, by having tested it in a Simple Farm Topology with one computer and local accounts.

For the current step, you can refer to this MSDN article: How to: Install SQL Server 2008 (Setup)

This installation is compliant with both MOSS 2007 and Windows SharePoint Services.

1 - Prerequisites
  • Be sure to have Windows 2003 Server with SP2 before starting installation.
2 - Installation Overview
This installation includes the following steps:
  • Step 1: Launching Installation
  • Step 2: prerequisites Installation dialog box
  • Step 3: Net Framework 3.5 + SP1 Installation
  • Step 4: Windows Installer 4.5 Installation
  • Step 5: Launching a new installation of SQL Server 2008
  • Step 6: Passing System Configuration Checker
  • Step 7: Choosing a free SQL Version, or entering product key
  • Step 8: SQL Server prerequisites Installation Wizard
  • Step 9: Passing System Configuration Checker
  • Step 10: Selecting Installation features
  • Step 11: Instance Configuration Page
  • Step 12: Disk Space Requirements Page
  • Step 13: Server Configuration
  • Step 14: DataBase Engine Collation
  • Step 15: Database Engine Configuration - Account Provisioning page
  • Step 16: Reporting Services Configuration page
  • Step 17: Error and Usage Reporting
  • Step 18: Passing System Configuration Checker
  • Step 19: Ready to install page - Installation Progress
  • Step 20: Closing Installation
  • Step 21: Checking Installation: Opening SQL Server 2008 Management Studio
  • Step 22: Configure your new SQL Server installation


3 - Installation
3.1 Step 1: Launching Installation
Double click the "setup.exe" of your SQL Server 2008 installation media.



3.2 Step 2: prerequisites Installation dialog box
If the prerequisites Installation dialog box appears, click OK.

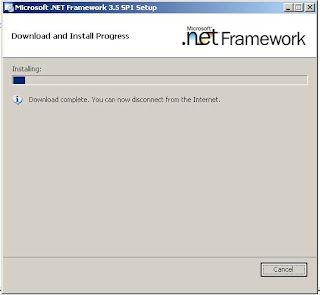

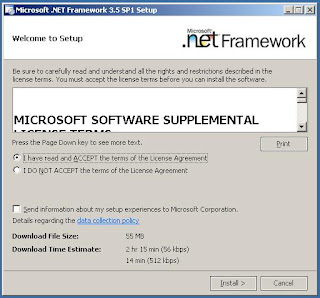

3.3 Step 3: Net Framework 3.5 + SP1 Installation
If the 3.5 SP1 installation dialog box appears, select the radio button to accept the .NET Framework 3.5 SP1 License Agreement. Click Install.
You may wait from 5 to 20 minutes depending on your system hardware configuration.







When installation of .NET Framework 3.5 SP1 is complete, click Exit.




3.4 Step 4: Windows Installer 4.5 Installation
Windows Installer 4.5 is also required, and might be installed by the Installation Wizard.

















If you are prompted to restart your computer, restart it, and then restart SQL Server 2008 setup.exe.



3.5 Step 5: Launching a new installation of SQL Server 2008
When the prerequisites are installed, the Installation Wizard will run the SQL Server Installation Center. To create a new installation of SQL Server 2008, click New Installation or Add Features to an Existing Installation.



3.6 Step 6: Passing System Configuration Checker
The System Configuration Checker will run a discovery operation on your computer. To continue, click OK. Setup log files are created for your installation. For more information, see How to: View SQL Server Setup Log Files.



3.7 Step 7: Choosing a free SQL Version, or entering product key
On the Product Key page, select an option button to indicate whether you are installing a free edition of SQL Server, or a production version of the product that has a PID key.

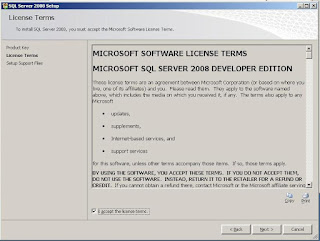

On the License Terms page, read the license agreement, and then select the check box to accept the license terms and conditions.

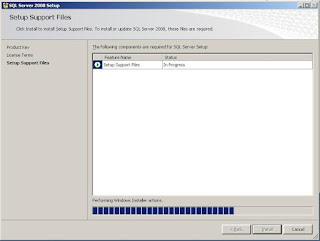

3.8 Step 8: SQL Server prerequisites Installation Wizard 2
The Installation Wizard will install SQL Server prerequisites if they are not already on the computer. These include the following:
  • .NET Framework 3.5 SP1
  • SQL Server Native Client
  • SQL Server Setup Support Files
To install prerequisites, click Install.

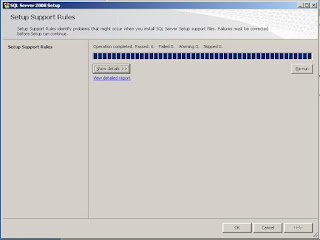

3.9 Step 9: Passing System Configuration Checker
The System Configuration Checker will verify the system state of your computer before Setup continues.



3.10 Step 10: Selecting Installation features
On the Feature Selection page, we have now to select the components for our installation. A description for each component group appears in the right pane after you select the feature name.



I provide some more information on the current choices:
  • Data Base Engine is obviously mandatory

  • Full text search
    I didn't check it because of SharePoint. SharePoint 2007 with SQL Server 2008 configuration doesn't need Full-Text Search feature anymore as it is well explained in MSDN blog:
                 Upgrading SharePoint SQL Servers to SQL Server 2008.

    On the other hand, I plan to install in a further step, SQL Server 2008 database samples (Adventure works), and these samples installation requires Full-Text search feature to be activated.

  • Business Intelligence Development Studio aka BIDS
    This is essential regarding Reporting Services integration as it is THE tool that will allow you to create reports and deploy them in SharePoint. For a SQL Server 2008 installation without Reporting Services you can avoid installing this feature.

  • Management-Tools Complete
    This feature will install Microsoft SQL Server Management Studio
    If you don't need Reporting Services, you can avoid checking complete feature, but the complete one install elements that runs with Reporting Services as noticed in description that appears in the right pane after you select the feature name.
You can also specify a custom directory for shared components by using the field at the bottom of the Feature Selection page. To change the installation path for shared components, either update the path in the field at the bottom of the dialog box, or click Browse to move to an installation directory. The default installation path is C:\Program Files\Microsoft SQL Server\100\.

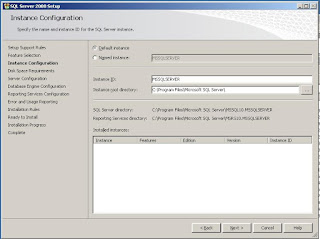

3.11 Step 11: Instance Configuration Page
On the Instance Configuration page, specify whether to install a default instance or a named instance. For a simple farm topology installation on ONE virtual machine, default instance will be enough.



3.12 Step 12: Disk Space Requirements Page
The Disk Space Requirements page calculates the required disk space for the features that you specify. Then it compares the required space to the available disk space. For more information, see Disk Cost Summary.



3.13 Step 13: Server Configuration
On the Server Configuration — Service Accounts page, specify login accounts for SQL Server services. For a simple farm topology installation on ONE virtual machine, I have chosen to use an unique service account that is the Virtual Machine Administrator.
I advise you to configure the SQL Server Agent Service in automatic mode, because it is used by Subscriptions of SQL Server Reporting Services 2008, and doing that, you will not need to start the service manually every time you restart your server.



3.14 Step 14: DataBase Engine Collation Configuration
The SQL Server database collation must be configured for case-insensitive, accent-sensitive, Kana-sensitive, and width-sensitive. This is to ensure file name uniqueness consistent with the Windows operating system as specified this technet article:
              Prepare the database servers



3.15 Step 15: Database Engine Configuration - Account Provisioning page
Choose Mixed mode as SharePoint propose in certain screens (Web Application Creation, Search Starting, etc.) to use SQL Authentication.
The two passwords to be typed are for the "sa" login.

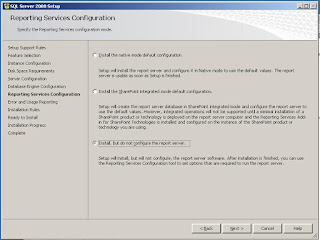

3.16 Step 16: Reporting Services Configuration page
We have to select the third option because SharePoint is not installed yet on the virtual machine.

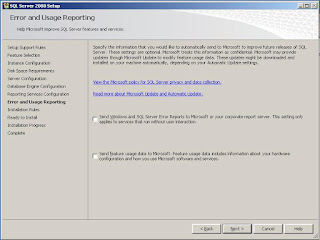

3.17 Step 17: Error and Usage Reporting
On the Error and Usage Reporting page, specify the information that you want to send to Microsoft that will help improve SQL Server. By default, options for error reporting and feature usage are enabled.



3.18 Step 18: Passing System Configuration Checker
The System Configuration Checker will run one more set of rules to validate your computer configuration with the SQL Server features that you have specified.



3.19 Step 19: Ready to install page - Installation Progress
The Ready to Install page shows a tree view of installation options that were specified during Setup. To continue, click Install.



You may wait from 5 to 20 minutes depending on your system hardware configuration.
During installation, the Installation Progress page provides status so that you can monitor installation progress as Setup continues.







3.20 Step 20: Closing Installation
After installation, the Complete page provides a link to the summary log file for the installation and other important notes. To complete the SQL Server installation process, click Close.



3.21 Step 21: Checking Installation: Opening SQL Server 2008 Management Studio
From your machine Start Menu navigate to open SQL Server 2008 Management Studio.



Connect to DataBase Engine



Check it opens properly and contains all usual features.



3.22 Step 22: Configure your new SQL Server installation
As specified in the previously referred article
              Prepare the database servers
We have to configure SQL Server in order to prepare SharePoint installation. As there is a change in the 2008 version of the Configuration Manager, this is the current way to proceed:

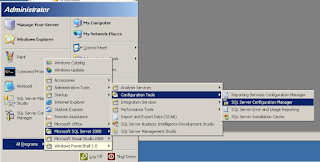

On the Start menu, point to All Programs, point to Microsoft SQL Server 2008, point to Configuration Tools, and then click SQL Server Configuration Manager.



Use the SQL Server Network Configuration area to enable connection protocols as follows:
  • Named Pipes Enabled
  • TCP/IP Enabled




Your SQL Server 2008 installation for Reporting Services Integration with SharePoint 2007 is done.
